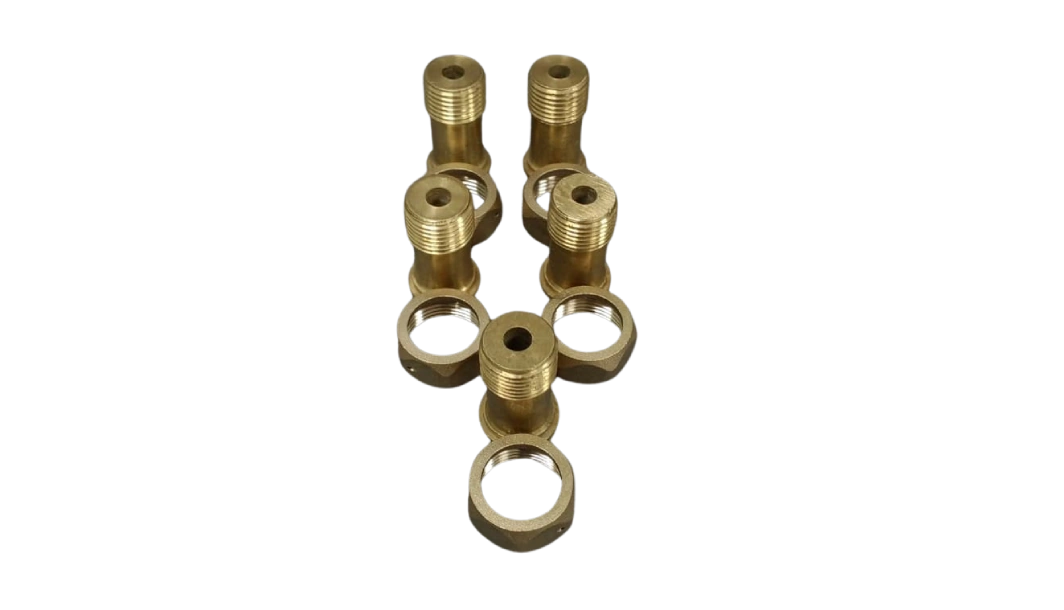

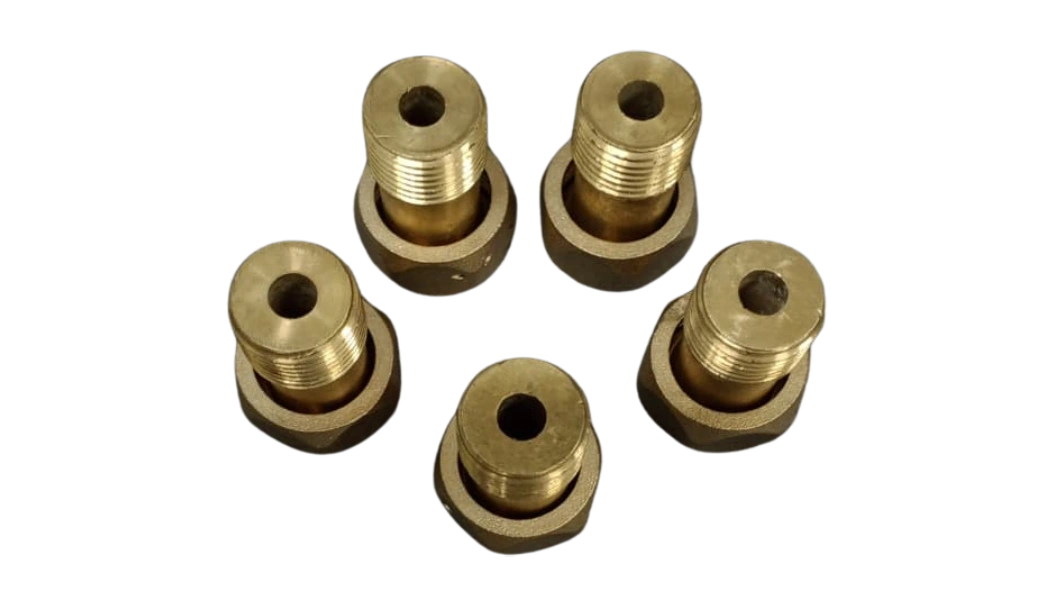

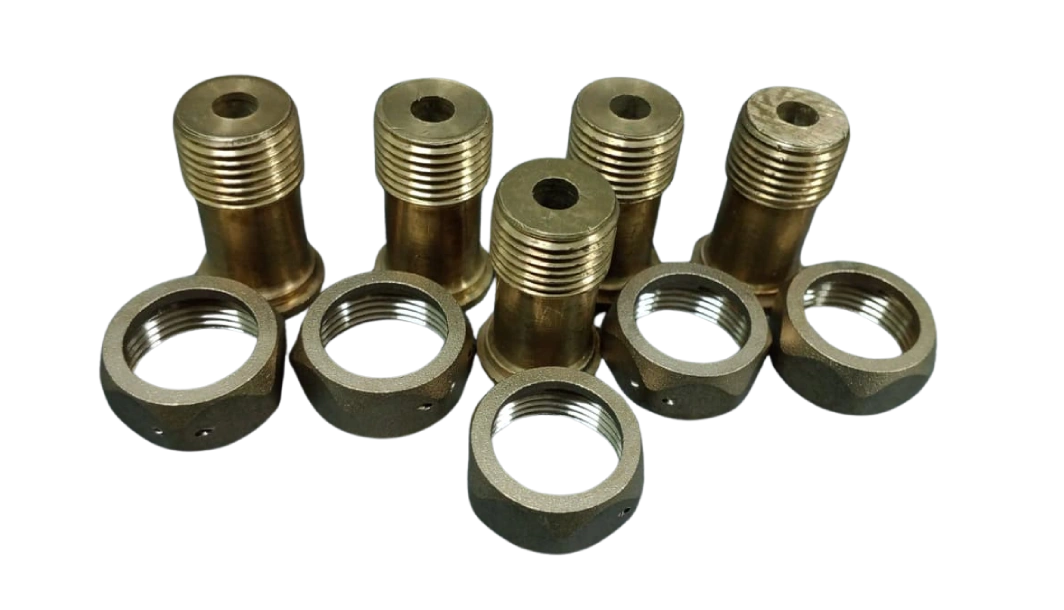

We have innovated ORIFICE FLOW EQUALIZER TM for equal distribution of water up to the end water
consumers by maintaining main line pressure thus resulting in equal distribution of water through service lines.
Application –
It is used for equal distribution of water to the consumers by maintaining pressure in water mains.
Sizes –
DN15mm | DN20mm |DN25mm
Technical Details –
Available in brass metal
| Dimensions | ||||||
|---|---|---|---|---|---|---|
| Type | Size (mm) | Length (mm) L |
Length with Nipple (mm) |
Width (mm) W |
Height (mm) H |
Connecting Thread D |
| Single Jet Class B |
15 | 110-2 | 250 ±5 | 92 ±1 | 75 ±1 | G 3/4B |
| Technical Specification | |||||
|---|---|---|---|---|---|
| Normal Size DN (mm) |
Class of measurement |
Overload Flow-rate Qmax (m³/h) |
Permanent flow-rate Qn (m³/h) |
Transitional flow-rate Qt (l/h) |
Minimum flow-rate Qmin (l/h) |
| 15 | B | 3 | 1.5 | 120 | 30 |
| Sr. No | Specifications | Dimensions | Tolerances |
|---|---|---|---|
| 1 | Overall length with Nipples (Lt) | 250 | ±5 |
| 2 | Overall length without Nipples (L) | 165 | 0, -2 |
| 3 | Total Width (W) | 83 | ±1 |
| 4 | Height (H) | 97 | ±1 |
| 5 | Threads (Nipples, Tn) | G1/2"B | Via Go/No Go |
| 6 | Threads (Body, Tb) | G3/4"B | Via Go/No Go |
| MATERIALS FOR BODY AND COMPONENT PARTS OF DOMESTIC WATER METER, SIZE 15, 20 & 25 MM | ||
|---|---|---|
| S.No. | Body / Component parts of water meter |
Material used |
| 1 | Body | Brass |
| 2 | Registration Box | ABS |
| 3 | Registration Box Cover (Visual) | Polycarbonate |
| 4 | Cap/Cap lid | ABS |
| 5 | Screws & Studs | High tensile brass |
| 6 | Strainer | HDPE |
| 7 | Impeller | Acetal Polymer (Delrin) |
| 8 | Chamber | ABS |
| 9 | Impeller Shaft | Stainless Steel |
| 10 | Nipples & Nuts | Brass |
| 11 | Bearings | Sapphire (Synthetic) |
| 12 | Dial & Counter | ABS |
