| Specification | Details |
|---|---|
| Enclosure | Rugged metal casing, water-resistant (IP-rated) |
| Dimensions | 150 mm × 150 mm × 100 mm |
| Installation | Outdoor mountable, pole or wall mount options |
| Power Supply | PoE (Power over Ethernet) |
| Backhaul Connectivity | 4G LTE (built-in SIM slot), Ethernet |
| LoRa® Chipset | SX1302 baseband processor |
| LoRaWAN® Support | LoRaWAN® Class A & C compliant |
| Antenna Options | 10 dBi omnidirectional antenna, sector antenna support |
| Frequency Bands | Region-specific (e.g., EU868, US915, IN865, etc.) |
| Channels | 8-channel LoRa® concentrator |
| Processor | Quad-core 64-bit ARM Cortex-A72-based (from onboard SBC) |
| Memory & Storage | MicroSD card based; expandable |
| Operating Temperature | -20°C to +65°C (typical industrial range) |
| Use Cases | Smart agriculture, smart city, industrial IoT, remote monitoring |
| Ease of Use | Simple configuration, remote management ready |

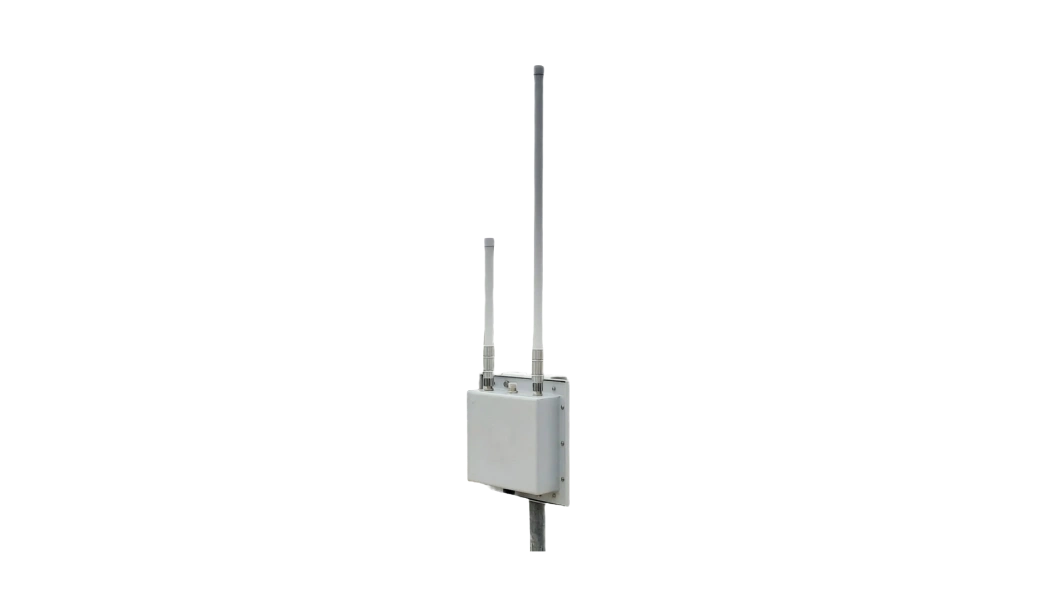

Lorawan Gateway
Industrial-grade outdoor LoRaWAN® gateway enclosed in a 150 × 150 × 100 mm IP-rated metal casing for reliable operation in harsh environments. It features PoE power input and built-in 4G LTE for flexible, redundant connectivity. At its core is the SX1302 baseband processor, enabling high-performance, low-power multi-channel LoRa® packet processing. The device supports both 10 dBi omnidirectional and sector antennas, making it adaptable for wide-area or directional coverage. Fully compliant with the latest LoRaWAN® Class A & C protocol specifications, it provides seamless integration with private and public LoRaWAN® networks. Designed for easy deployment, it simplifies access to IoT applications in smart cities, agriculture, utilities, and remote monitoring. Its compact footprint, industrial design, and robust wireless capabilities make it a reliable choice for outdoor IoT infrastructure.
